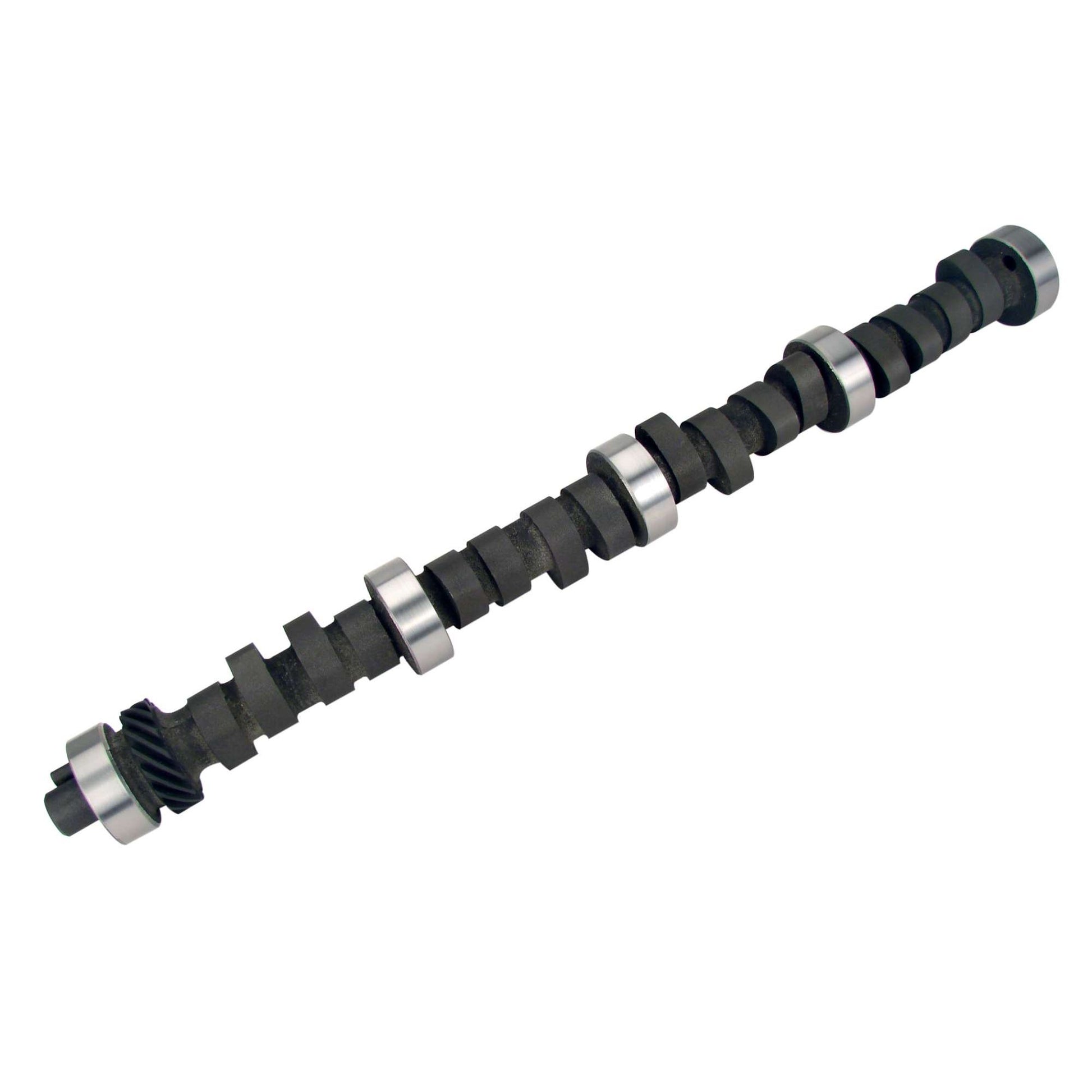

COMP Cams Xtreme Marine 226/236 Hydraulic Flat Cam for Ford 429460 COMP-34-236-4

Attributes:

• GTIN: 00036584038610
• Brand Name: COMP Cams
• Camshaft Series: Xtreme Marine
• Usage: Marine
• Cam Type: Hydraulic Flat Tappet
• Grind Number: XM270H
• Basic Operating RPM Range: 1,600-5,800
• Intake Duration at .050 Inch Lift: 226
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 286
• Lobe Separation: 112
• Intake Valve Lift: 0.544
• Exhaust Valve Lift: 0.547
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Ford 429, 460 c.i. 8 Cylinder (1968-1995)
• Cam and Lifter Kit Upgrade: CL34-236-4
• K-Kit Upgrade: K34-236-4
• Lifter Type: Hydraulic Flat Tappet
• SK-Kit Upgrade: SK34-236-4
• Amazon ASIN: B001O07FXU
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 11.81 lb
