COMP Cams Xtreme Marine 230/236 Hydraulic Roller SK-Kit Chevrolet Big Block GEN VI COMP-SK01-451-8

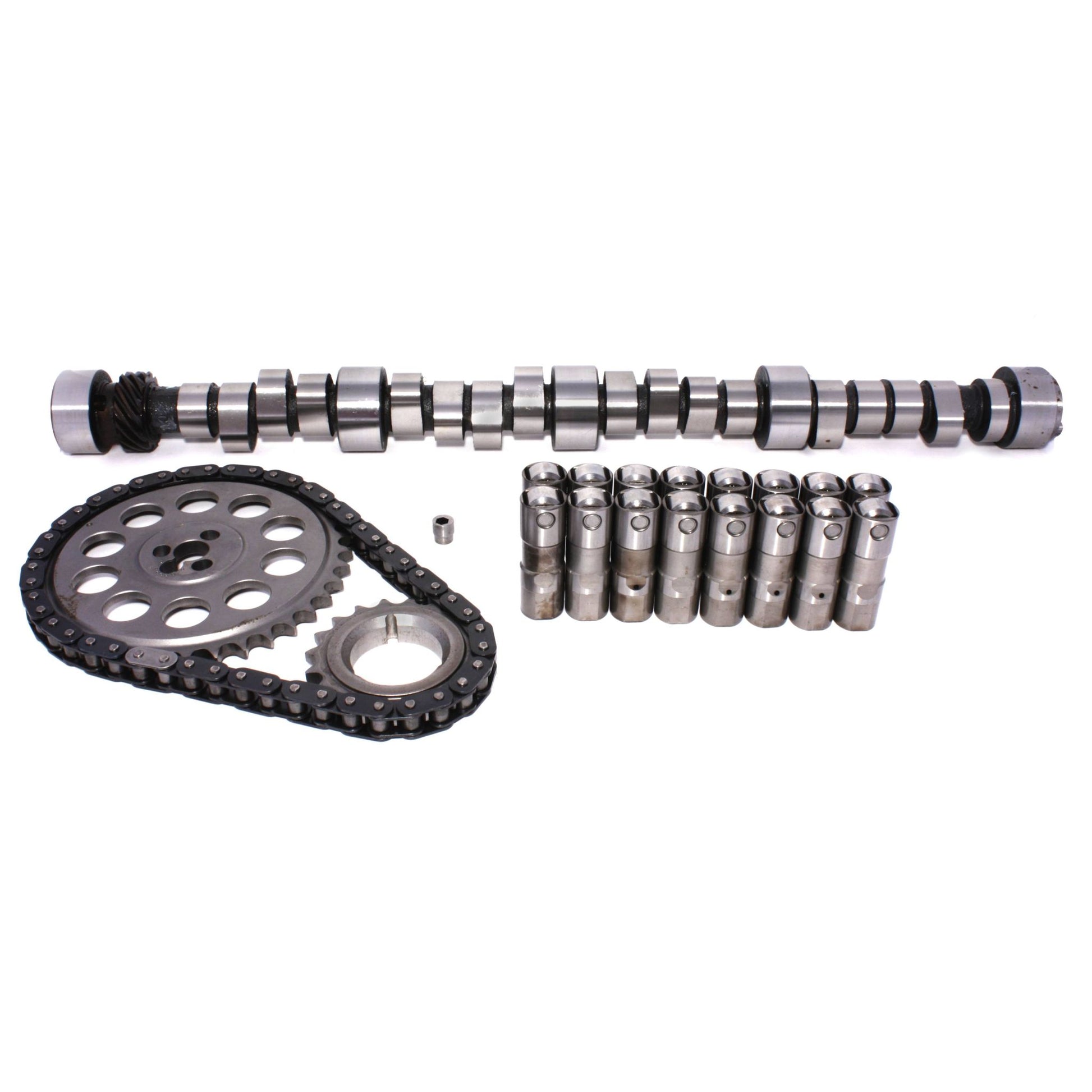

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.

Attributes:

• GTIN: 00036584089759
• Brand Name: COMP Cams
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Amazon ASIN: B001GF3LYK
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: SK-Kit - Small Kit
• Camshaft Series: Xtreme Marine
• Usage: Marine
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,200-5,800
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 236
• Advertised Intake Duration: 284
• Advertised Exhaust Duration: 290
• Lobe Separation: 112
• Intake Valve Lift: 0.547
• Exhaust Valve Lift: 0.547
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Lifter Type: Hydraulic Roller
• Timing Chain and Gears Included: Yes
• Valve Stem Seals Included: No

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.2 x 10.2 x 5.3 inches
• Weight: 20.8557 lb
