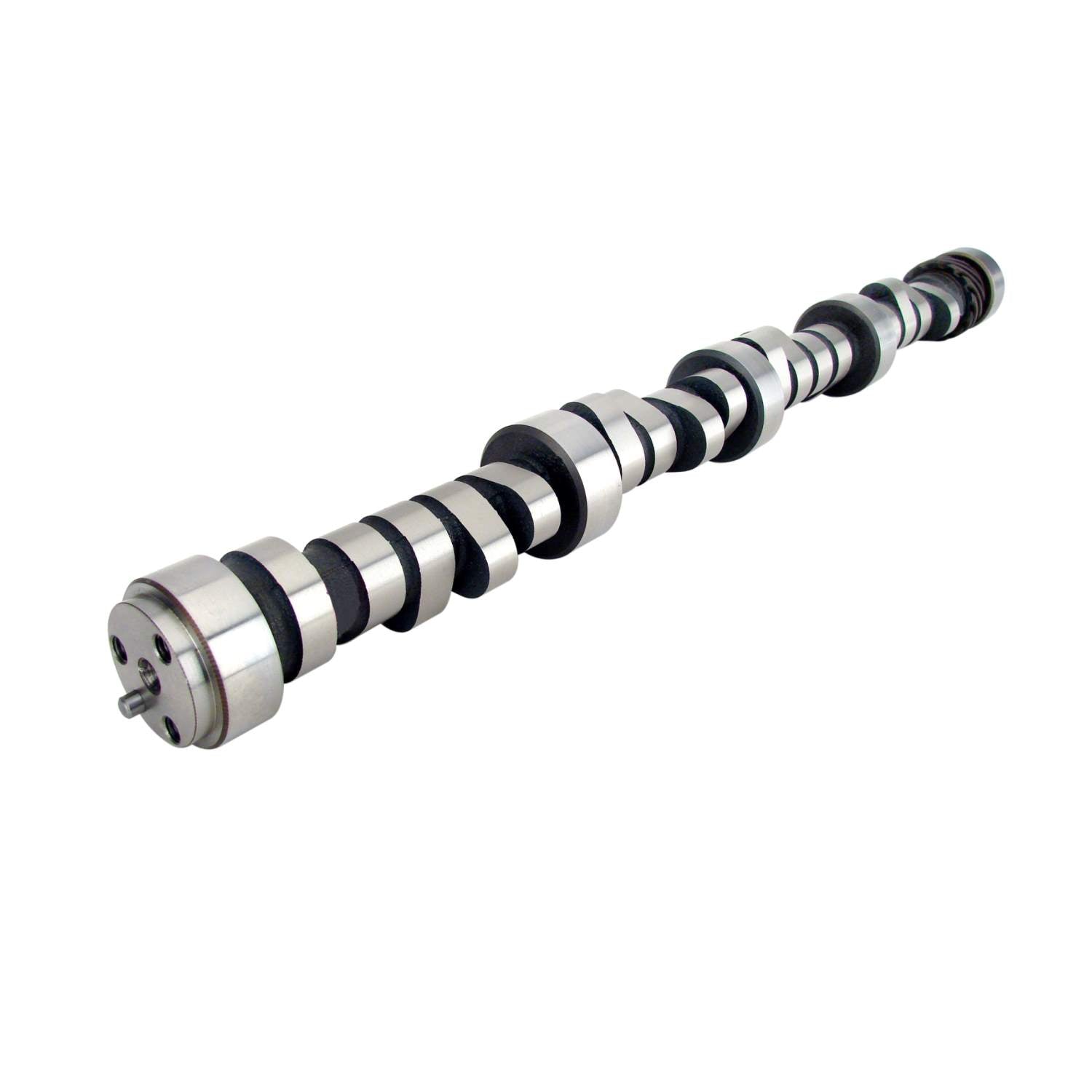

COMP Cams Xtreme Marine EFI 235/243 Hydraulic Roller Cam for Chevrolet Big Block GEN VI COMP-01-446-11

Attributes:

• GTIN: 00036584262855
• Brand Name: COMP Cams
• Exhaust Valve Lift: 0.627
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Lifter Type: Hydraulic Roller
• Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Xtreme Marine EFI
• Usage: Marine
• Cam Type: Hydraulic Roller
• Grind Number: XM289HR-14
• Basic Operating RPM Range: 2,500-6,000
• Intake Duration at .050 Inch Lift: 235
• Exhaust Duration at .050 inch Lift: 243
• Advertised Intake Duration: 289
• Advertised Exhaust Duration: 297
• Lobe Separation: 114
• Intake Valve Lift: 0.61

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.4 x 2.9 x 2.6 inches
• Weight: 10.8908 lb
